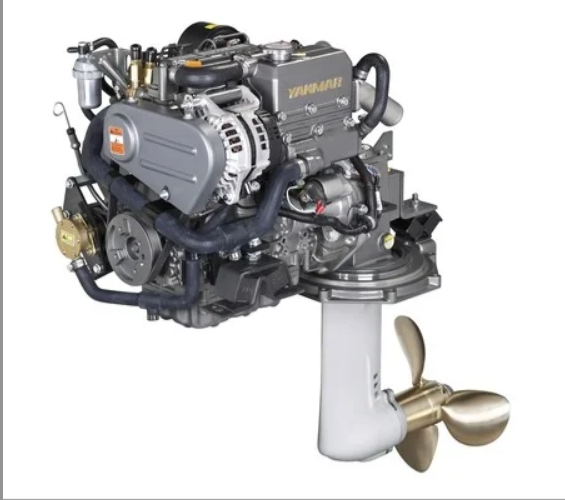

New Yanmar 3YM30AE Inboard Diesel Engine 3 Cylinder, 1.27-liter diesel engine, Naturally Aspirated, Gear – KM2P-1, Sail Drive – SD25. YM Series NEW 3YM30 (29HP/21kW) More displacement, more torque, quieter, cleaner ruing and featuring an all-new three-cylinder block and combustion system. This is the latest in high output marine diesel technology.

Yanmar 3YM30AE Inboard Diesel Engine Specifications:

Rated Output : 21.3 kW / 29.1 mhpnRated Speed : 3200 rpmnDisplacement : 1.266 L / 77 cu. iNo. of cylinders : 3 cylindersnCylinder Bore x Stroke : 80 mm x 84 mm / 3.15 in x 3.31 iCombustion system : Indirect Injection, In-line PumpnAspiration : NaturalnAlternator : 12V – 125AnDry weight without gear : 127 kg / 280 lbsnDimensions : 715 mm x 485 mm x 545 mmnControls : MechanicalnCertifications : RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC

Standard Engine Package

– Exhaust mixing elbow [L-type]n- Alternator 12V – 125An- B20 paneln- Flexible mountsn- Expansion tank for fresh water cooling systemn- Electric stop solenoidn- Belt safety cover

Optional Accessories

– High-riser mixing elbow [instead of L-elbow]n- Extension wire harness [4m, 6m]n- Dual harness [for 2nd station]n- TFX Sidemount control headn- Hot water kit with cocksn- Extension saildrive leg [50 mm]n- Propeller cone nut kit SD25n- On-board spare parts kit
